Home > T Slot Aluminum extrusion

T Slot Aluminum Extrusions

At Fusion Aluminum, we offer a full range of T-slot aluminum profiles, available in various sizes and series to meet the diverse needs of our clients. Our T-slot systems are designed for versatility and ease of assembly, making them ideal for use in industries such as industrial automation, robotics, automotive, and custom workstations.

Low MOQ – 200Kg

Start your project with a small minimum order, reducing your upfront costs and risk.

Full series

From 20 series to 100 series, we provide full series of T slot aluminum for your design.

Immediate stock sales

1000+ Tons of T slot aluminum in stock, streamline the purchasing process.

T slot accessories

Your one-stop T slot aluminum product supplier. More efficient, convenient and reliable.

T Slot aluminum profile for custom solutions

20 series

2020 T-slot aluminum
2040 T-slot aluminum
2060 T-slot aluminum
2080 T-slot aluminum
Get A quote

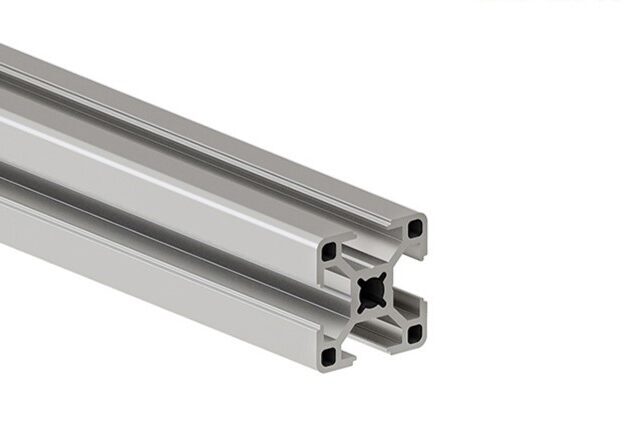

30 series

3030 T-slot aluminum
3060 T-slot aluminum
3090 T-slot aluminum
30120 T-slot aluminum
30150 T-slot aluminum
Get a Quote

40 series

4040 T-slot aluminum
4080 T-slot aluminum
40120 T-slot aluminum
40160 T-slot aluminum
40200 T-slot aluminum
Get A Quote

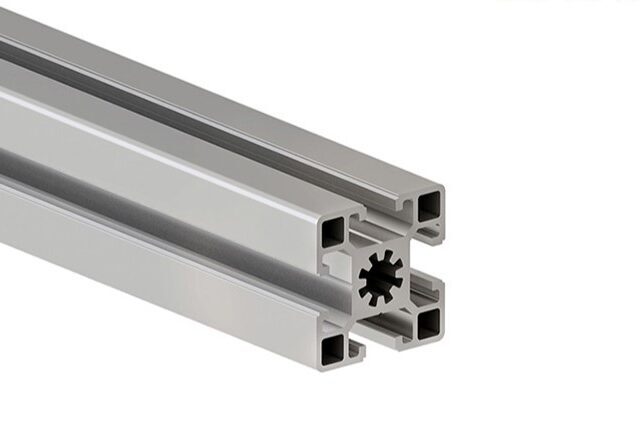

45 series

4545 T-slot aluminum
4560 T-slot aluminum
4590 T-slot aluminum
Get A Quote

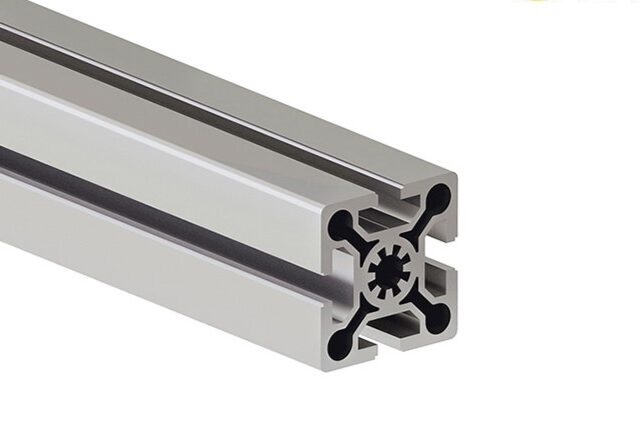

50 series

5050 T-slot aluminum
50100 T-slot aluminum
Get A Quote

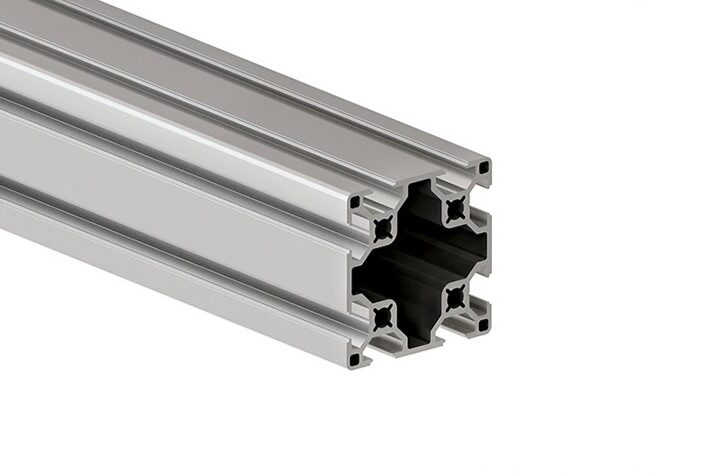

60 series

6060 T-slot aluminum
6090 T-slot aluminum
60120 T-slot aluminum
6630 T-slot aluminum
Get A Quote

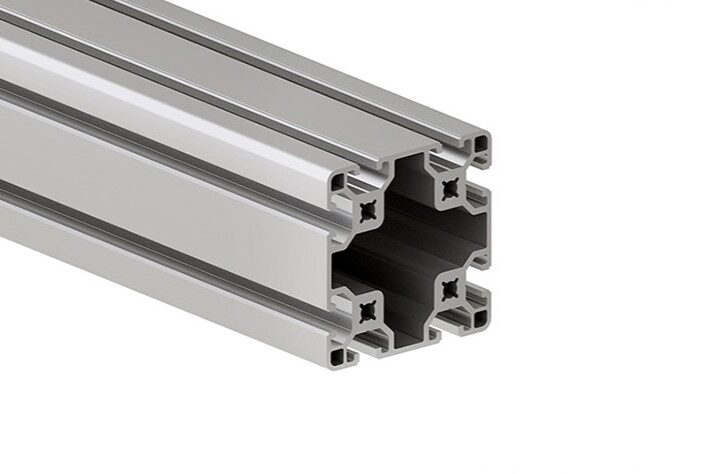

80 series

8080 T-slot aluminum
80120 T-slot aluminum
80160 T-slot aluminum
8840 T-slot aluminum
Get A Quote

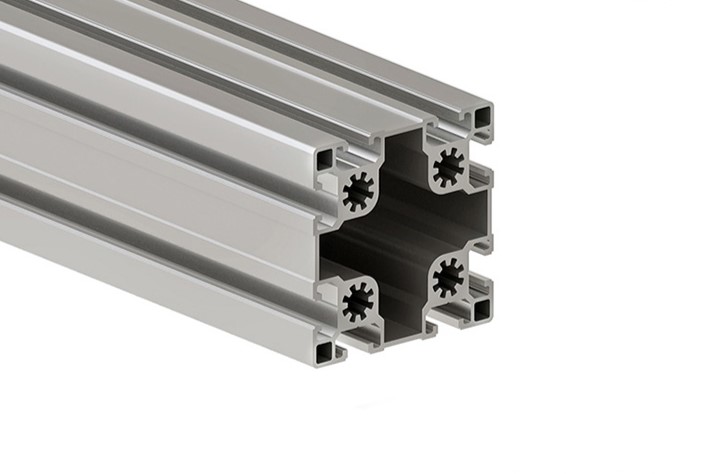

90-120 series

9090 T-slot aluminum
90180 T-slot aluminum
100100 T-slot aluminum
120120 T-slot aluminum
Get A Quote

Can not find the size you need?

Send your requirements to us, and we will come back to you within 24 hours with solution.

Get a Quote

How much weight can an aluminum T slot hold?

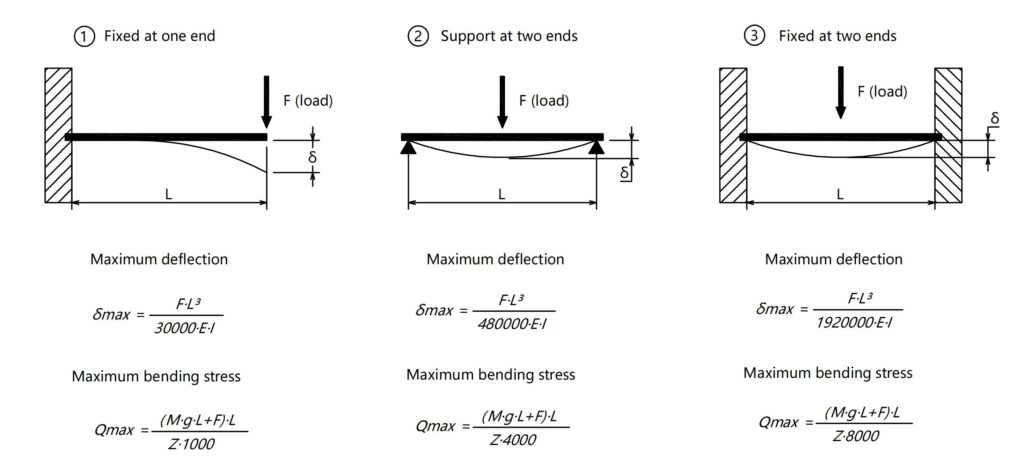

Calculation formula of the maximum deflection of T slot aluminum

Where:

VariableDescriptionValueUnitNote
QmaxMaximum bending stress–N/mm2
δmaxMaximum deflection–mm
LT slot extrusion legnth–mm
EYoung modulus70000N/mm2Aluminum 6063-T5
IMass of inertia–cm4Specs of selected T slot extrusion
ZSection modulus–cm3Specs of selected T slot extrusion
gGravitational acceleration9.81N/kg
MExtrusion weight per meter–Kg/mmSpecs of selected T slot extrusion
FApplied force–N

Calculation Example

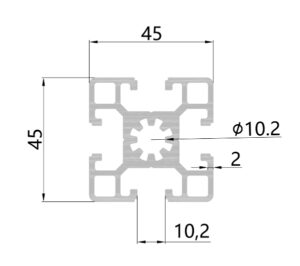

Take Fusion’s 4545 T slot aluminum extrusion for example, If the length is 500mm, the applied force is 800N, and we fixed the T slot extrusion at two ends (type 3). The Maximum deflection δmax = 0.05mm.

How to connect T-slot aluminum extrusions?

There are various connection methods for T-slot aluminum profiles, and the appropriate method can be selected based on different application scenarios and needs. Below are some common connection methods:

Built-in connector: Used for 90° connections between two profiles. It is a hidden connector with high connection strength.
Angle bracket: Used for external connections to fix the profile at an angle. Available in 90°, 45°, and 135° angle options, and can be used to secure cover plates.
Screw connection: Used for 90° internal connections between two profiles. It is easy to install and remove, often used for simple profile enclosures.

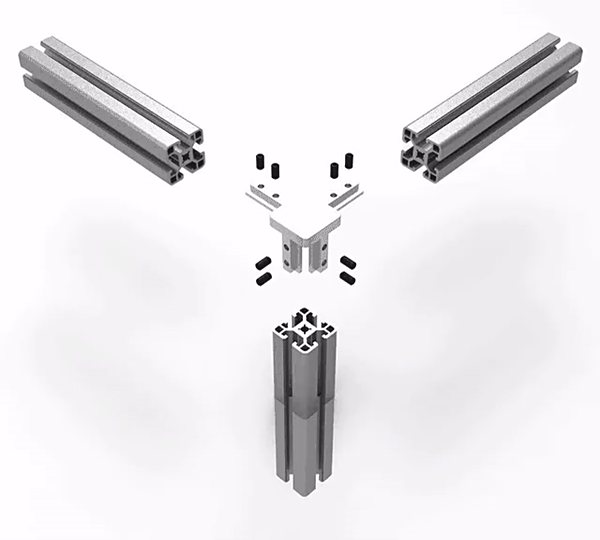

3-Dimensions connector: Used for right-angle connections between three profiles. It provides quick and convenient connections.
Elastic fastener: Used for 90° internal connections between two profiles, offering easy installation and removal.
End connector: Used for 90° internal connections between two profiles. It is a hidden connector with high connection strength.

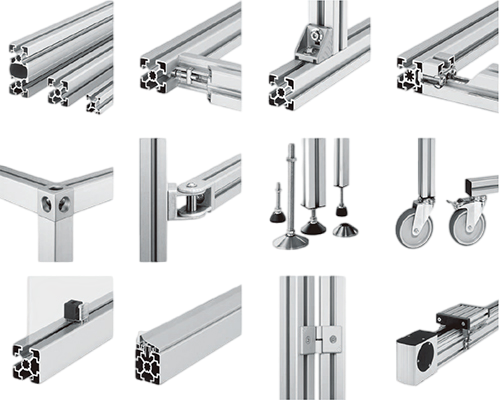

Some connector types of T-slot aluminum extrusions.

The below pictures show some connector types of T-slot aluminum extrusions. As a leading aluminum extrusion company, we also provide a full series of T-slot accessories that perfectly fit with our T-slot aluminum extrusions.

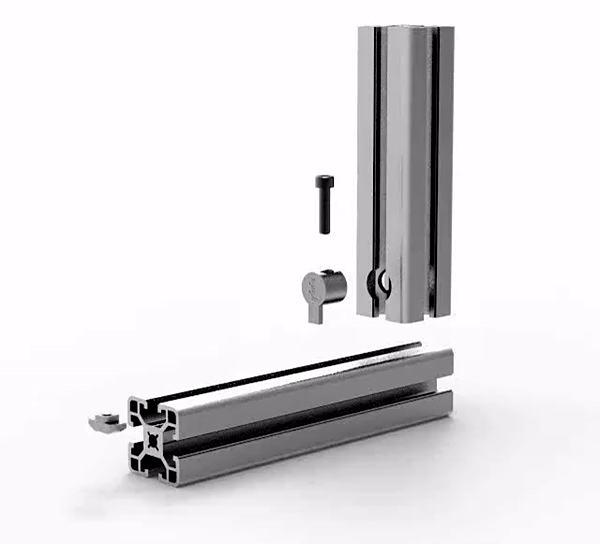

Built-in connector

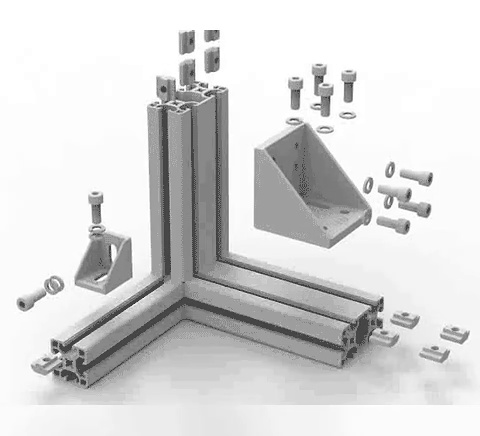

Angle bracket

3-dimensions connector

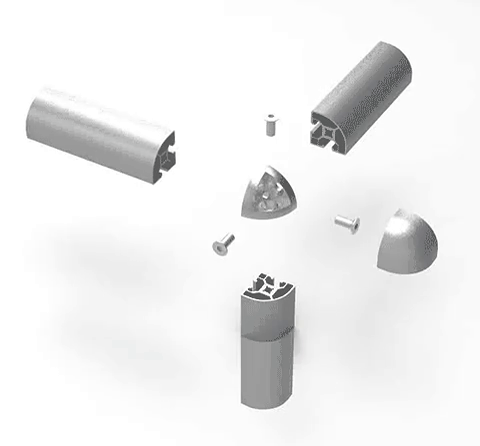

3D connector round

Looking for other T slot accessories?

Send your requirements to us, and we will come back to you within 24 hours with solution.

Get a Quote

What is T-slot aluminum used for?

T-slot aluminum is a versatile, modular framing system used in a wide range of applications across different industries. Some common uses include:

Industrial Automation: Machine frames, conveyor systems, workstations.
Workstations: Customizable workstations, ergonomic desks, and assembly stations are often built using T-slot aluminum profiles.
Robotics and Automation Systems: T-slot aluminum provides the structural framework for robotic systems with high customizable options.
3D Printers: It is widely used in constructing 3D printers, CNC machines, and other automated manufacturing systems.
Shelving and Storage Systems: T-slot aluminum is used for creating adjustable shelving units, storage systems, and racking solutions that can be easily reconfigured.
DYI for hobby: Personal users can DIY furniture they like with T slot profiles and accessories.

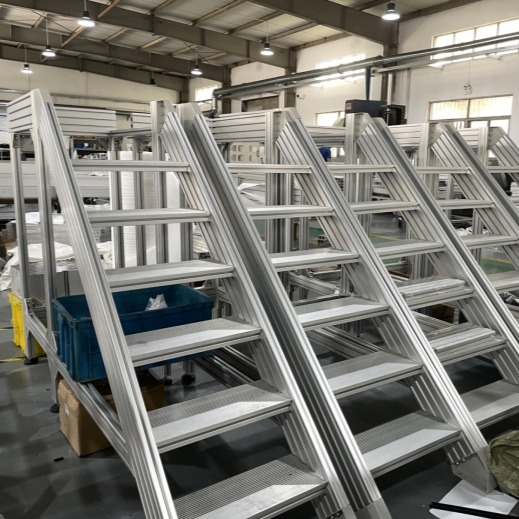

Stairs

For industrial use

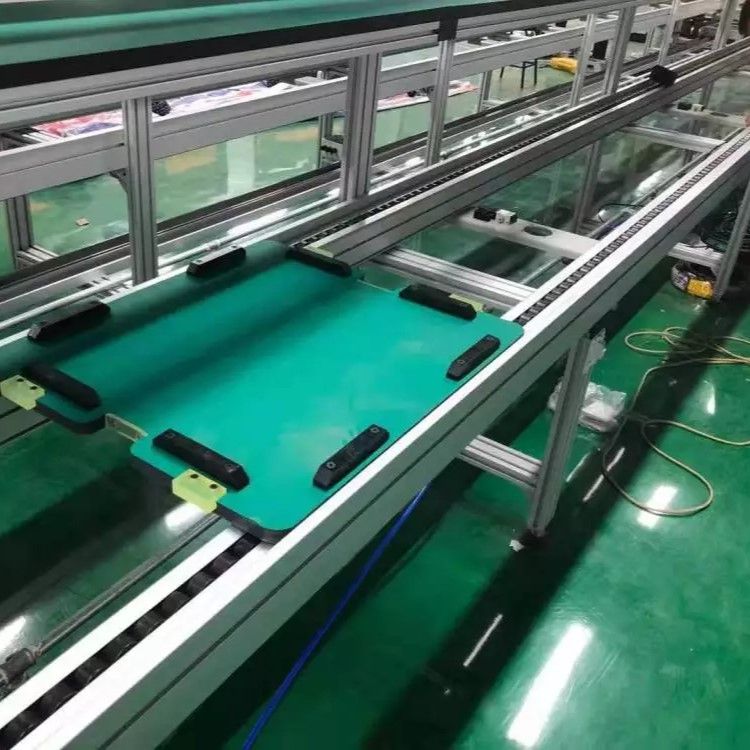

Production line

For industrial use

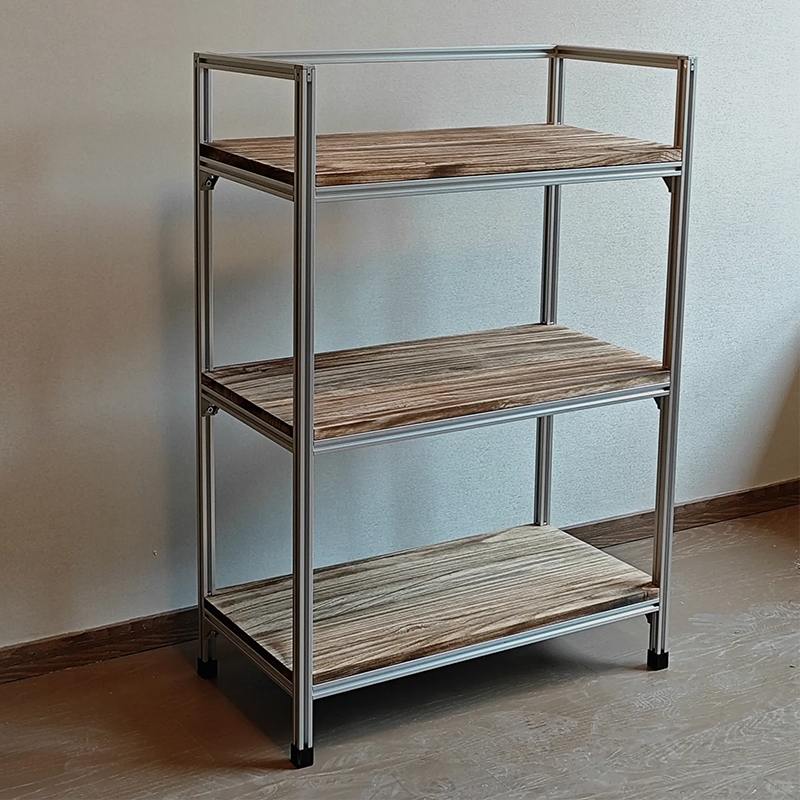

DIY

For hobby

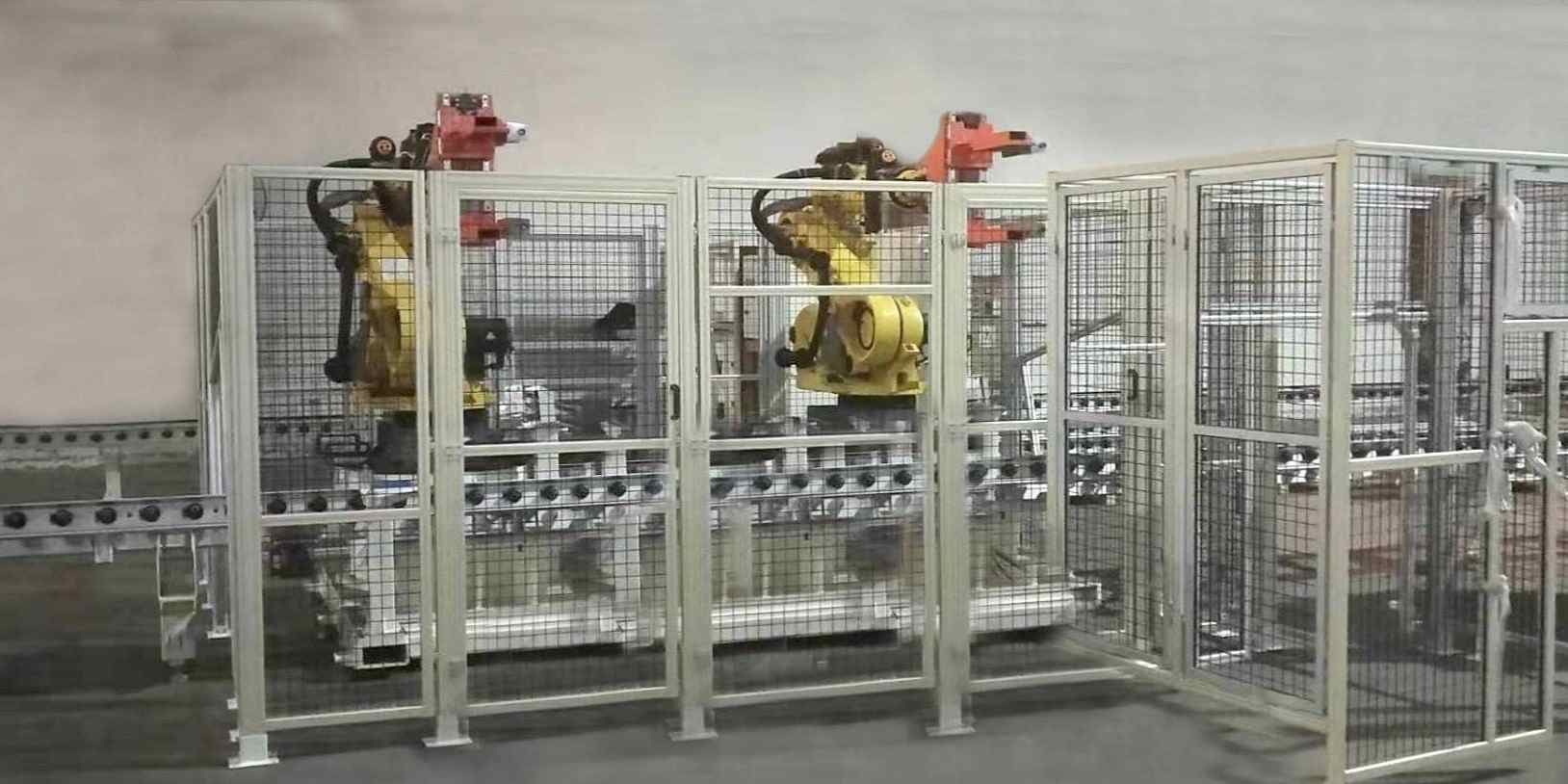

Safety fence

For industrial use

Hot sell T slot aluminum extrusions

Get A Quote

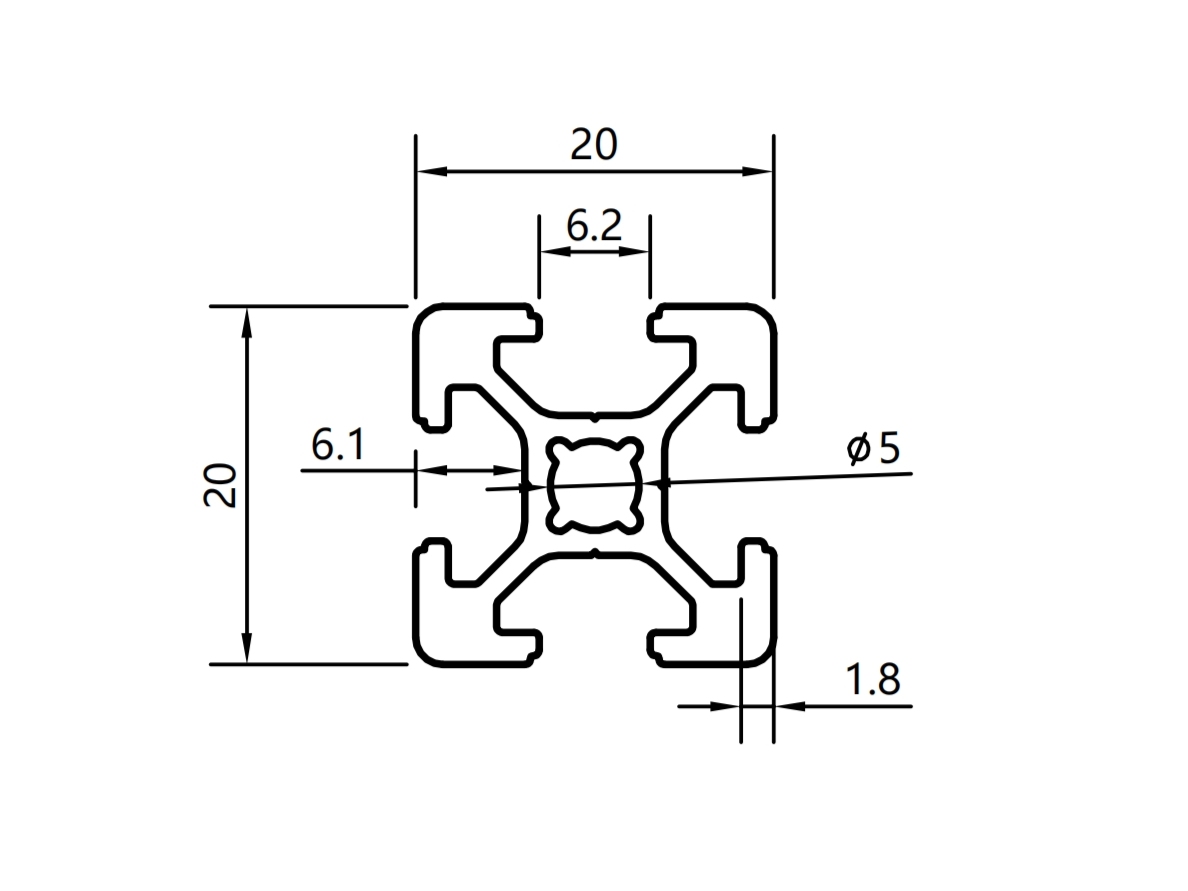

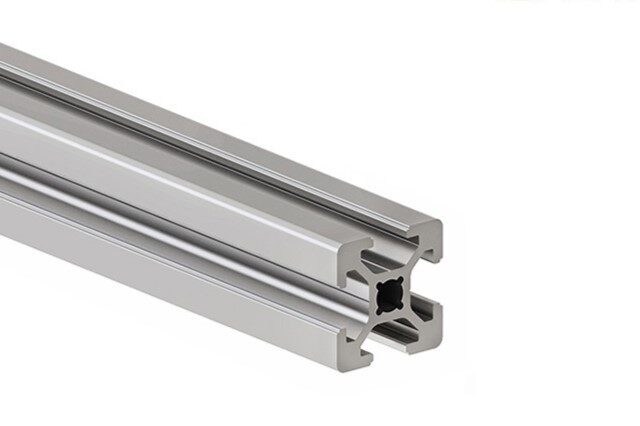

2020 aluminum extrusion

Size: 20x20mm
Material: 6063 Aluminum – T5
Thickness: 1.8mm
Weigh/meter: 0.5kg/m
Mass of inertia: 0.72cm4
Section modulus: 0.72cm3

Get A Quote

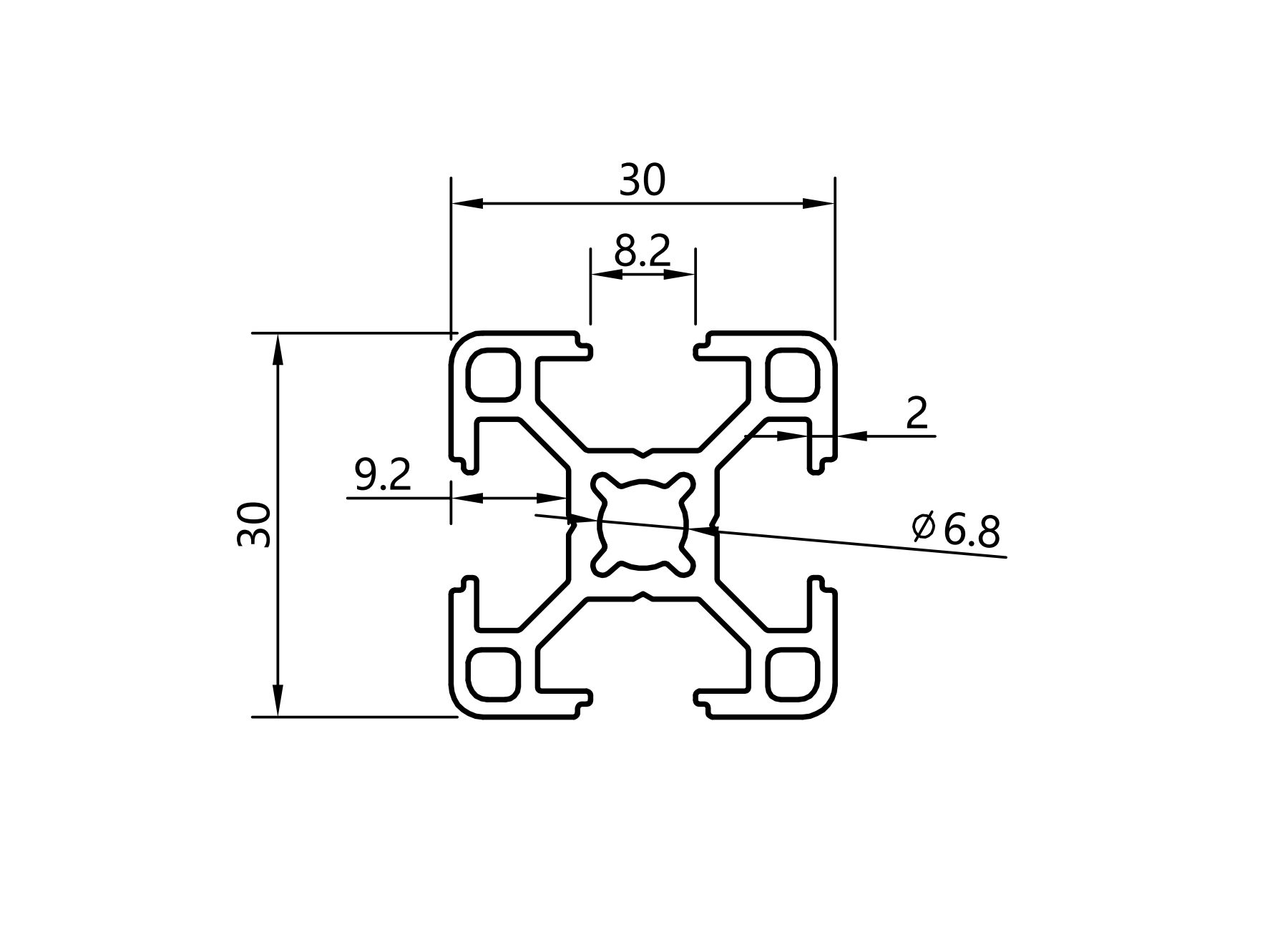

3030 aluminum extrusion

Size: 30x30mm
Material: 6063 Aluminum – T5
Thickness: 2.0mm
Weigh/meter: 0.95kg/m
Mass of inertia: 2.85cm4
Section modulus: 1.8cm3

Get A Quote

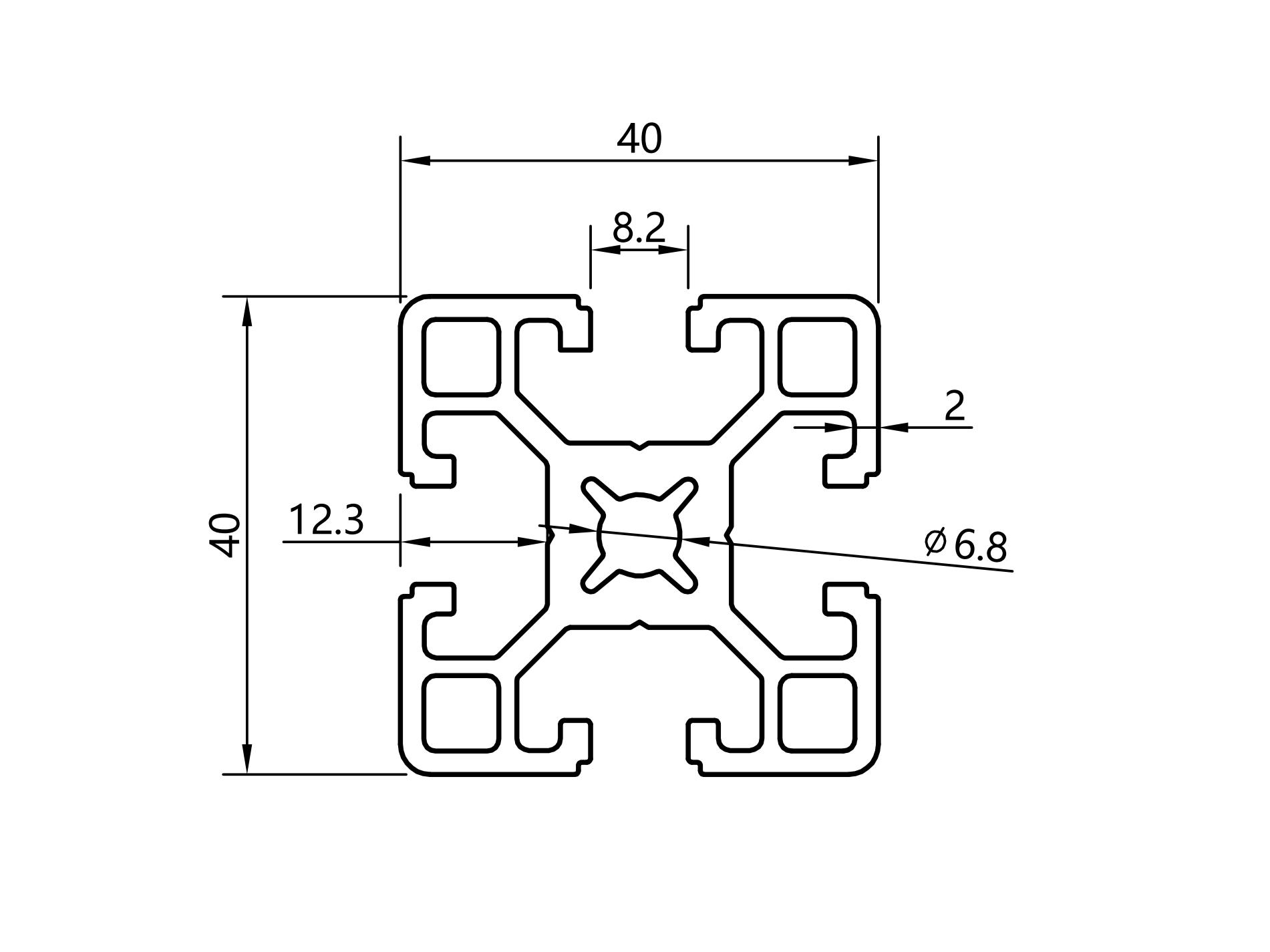

4040 aluminum extrusion

Size: 40x40mm
Material: 6063 Aluminum – T5
Thickness: 2.0mm
Weigh/meter: 1.75kg/m
Mass of inertia: 9.7cm4
Section modulus: 5.1cm3

Get A Quote

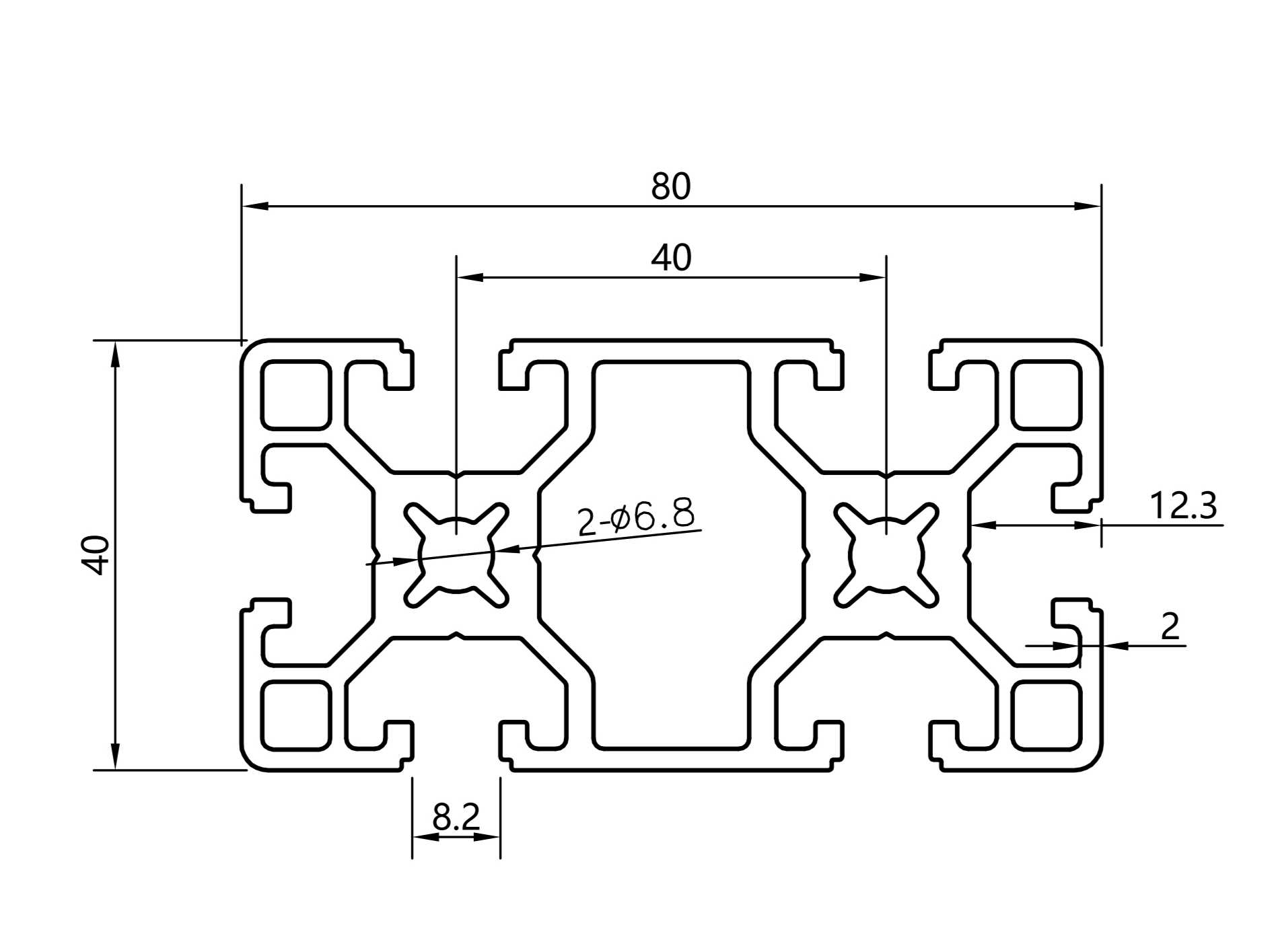

4080 aluminum extrusion

Size: 40x80mm
Material: 6063 Aluminum – T5
Thickness: 2.0mm
Weigh/meter: 3.20kg/m
Mass of inertia: 74.8cm4-20.35cm4
Section modulus: 17.4cm3-8.7cm3

Get A Quote

Why Choose Fusion Aluminum?

Low MOQ

Start your project with a small minimum order, reducing your upfront costs and risk.

1-2 weeks for mold development

Quickly bring your designs to life and shorten your product launch timeline.

2000+ standard molds

Save on mold costs by choosing from a wide selection of existing molds, speeding up production.

Fast response within 24 hours

Get the answers you need without delay, ensuring smooth communication and faster decision-making.
